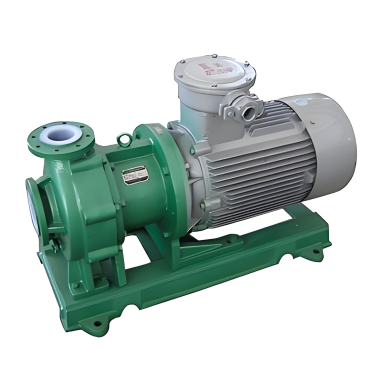

IMD fluoroplastic magnetic centrifugal pump

Brand：YI PUMP VALVE
Type：IMD
PN/H：6~82m
Heat：-20℃~100℃
Connection Type：flange

Product Name：IMD fluoroplastic magnetic centrifugal pump
Diameter：3.5~220T/h
Material：Lined with fluorine
Driven Mode：Motor, magnetic drive
Applicable Scope：Suitable for various corrosive media similar to water.

Product Overview
Performance Data
Size Weight

IMD fluoroplastic magnetic centrifugal pump

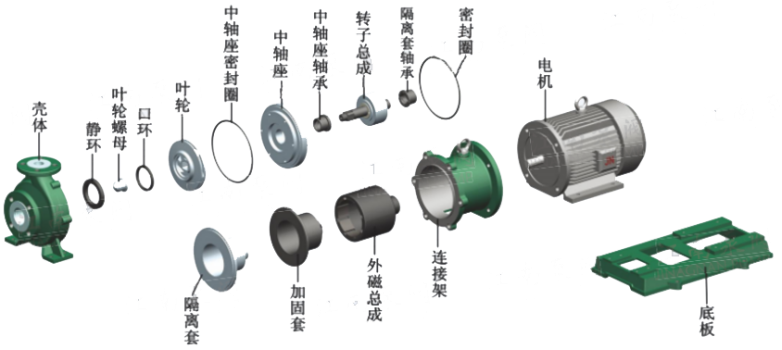

IMD Fluoroplastic Magnetic Pump Product Diagram

IMD fluoroplastic magnetic centrifugal pump,strong corrosion resistance,no leakage.pump shell with foot,the pump and motor are fixed on the common base,good stability,running need toremove the pipe and the base,saving man-hours and maintenance cost,bring great convenience to clients.

Appicable temperature:-20℃~100℃

Structure and material

Model and Performance Parameter Table

*表格φ流量扬程加粗字体为基本型 bold font as the standard model

序号		型号(Model)	转速(Rev)=1450r/min 介质密度(Medium density)=1000kg/m³
			流量Flow(m3/h)		扬程Pump head(m)		效率η(%)		进口 Inlet (mm)		出口 Outlet (mm)			汽蚀余量 NPSHr(m)		电机功率 Power(kw)	整机重量 Weight (kg)
1		IMD40-25-140	4		26		35		φ40		φ25			3.0		3	75
			6		25
			8		23
2		IMD40-25-150	4		30		33		φ40		φ25			3.0		3	75
			6		28
			8		26
3		IMD40-25-160	3.5		21		32		φ40		φ25			3.0		3	75
			6		33
			8		32
4		IMD40-25-180	8		9		30		φ40		φ25			3.0		4	85
			6		40
			15		6
5	MD40-25-200			4		52		28		φ40		φ25	3.0		5.5			105
				6		50
				89		47
6	IMD50-32-125					22		45		φ50		φ32	3		2.2			75
				12		20
				15		15
7	IMD50-32-140			9		27		38		φ50		φ32	3.5		3			75
				12		25
				15		22
8	IMD50-32-160			8		30		40		φ50		φ32	3.5		4			80
				12		33
				15		30
9	IMD50-32-165			8		43		36		φ50		φ32	3.5		5.5			110
				12		40
				16		36
10	IMD50-32-200			8		52		34		φ50		φ32	3.5		7.5			115
				12		50
				16		47
11	IMD65-50-145			18		28		50		φ65		φ50	4.0		4			85
				25		25
				35		22
12	IMD65-50-160			18		35		53		φ65		φ50	4.0		5.5			90
				25		32
				35		28
13	IMD65-40-180			18		42		48		φ65		φ40	4.0		7.5			120
				25		40
				35		36
14	IMD65-40-200			18		52		45		φ65		φ40	4.0		11			250
				25		50
				35		46
15	IMD80-65-125			35		22		58		φ80		φ65	4.0		7.5			95
				50		20
				65		17
16	IMD80-65-150			35		27		57		φ80		φ65	4.5		7.5			120
				50		25
				65		22
17	IMD80-65-165			35		38		55		φ80		φ65	4.5		11			180
				50		35
				65		32
18	IMD80-50-180			35		43		51		φ80		φ65	4.5		11			185
				50		40
				60		37
19	IMD80-50-200			35		55		48		φ80		φ65	4.5		15			195
				50		50
				65		44
20	IMD80-50-250			35		82		48		φ80		φ65	4.5		30			220
				50		80
				60		75
21	IMD100-80-125			75		24		60		φ100		φ80	5.0		11			180
				100		20
				120		18
22	IMD100-80-150			75		32		62		φ100		φ80	5.0		15			220
				100		25
				120		26
23	IMD100-80-170			75		38		60		φ100		φ80	5.0		18.5			245
				100		36
				120		34
24	MD100-65-200			65		51		62		φ100		φ65	5.0		30			320
				100		50
				120		35
25	IMD125-100-180			120		38		63		φ125		φ100	6.0		30			320
				150		35
				180		30
26	IMD125-100-200			120		55		65		φ125		φ100	6.0		55			430
				200		50
				220		35

Outline dimension diagram

外形尺寸表 Outline dimension table

*表中尺寸仅供参考，公司保留更改的权利，以单页具体型号安装尺寸为准。

*The dimensions in the table are for reference only, and the company reserves the right to make changes. The specific model installation dimensions on a single page shall prevail.

序号	系列型号Mode	外型安装尺寸Outside and installing size								进口法兰尺寸Inlet flange size				出口法兰尺寸Outlet flange size
序号	系列型号Mode	L	S	f	W	T	H	h	X	C	a	b	n-φd	k	g	i	n-φt
1	IMD40-25-140F	578	225	85	225	180	330	160	/	32	140	100	4-φ13.5	20	100	75	4-φ13.5
2	IMD40-25-160F	625	225	85	220	220	330	170	/	40	150	110	4-φ13.5	25	115	85	4-φ13.5
3	IMD40-25-200F	745	350	97	290	240	390	190	1	40	150	110	4-φ17.5	25	115	85	4-φ13.5
4	IMD50-32-160F	625	225	85	260	220	330	170	/	50	165	125	4-φ17.5	32	140	100	4-φ17.5
5	IMD50-32-200F	710	350	95	290	240	395	190	112	50	165	125	4-φ17.5	32	140	100	4-φ17.5
6	IMD65-50-125F	625	225	85	260	220	330	170	1	65	185	145	4-φ17.5	50	165	125	4-φ17.5
7	IMD65-50-150F	670	350	95	290	240	395	190	102	65	185	145	4-φ17.5	50	165	125	4-φ17.5
8	IMD65-50-160F	670	350	95	290	240	395	190	102	65	185	145	4-φ17.5	50	165	125	4-φ17.5
9	IMD65-50-180F	710	350	95	290	240	395	190	102	65	185	145	4-φ17.5	50	165	125	4-φ17.5

外形尺寸图二Outline dimension drawing 2

外形尺寸表二Table 2 of External Dimensions

*表中尺寸仅供参考，公司保留更改的权利，以单页具体型号安装尺寸为准。

*The dimensions in the table are for reference only, and the company reserves the right to make changes. The specific model installation dimensions on a single page shall prevail.

序号	系列型号 Model	外型安装尺寸Outside and installing size									进口法兰尺寸Inlet flange size				出口法兰尺寸Outlet flange size
序号	系列型号 Model	L	B	S	P	W	T	H	h	f	C	a	b	n-φd	k	g	i	n-φt
1	IMD65-40-200F	935	800	420	120	490	440	440	260	99	65	185	145	4-φ17.5	40	150	110	4-φ17.5
2	IMD80-65-125F	915	800	420	120	490	440	460	260	99	80	200	160	8-φ17.5	65	185	145	4-φ17.5
3	IMD80-65-160F	936	800	420	120	490	440	460	260	99	80	200	160	8-φ17.5	65	185	145	4-φ17.5
4	IMD80-50-200F	1340	1270	840	215	490	440	460	260	99	80	200	160	8-φ17.5	50	185	125	4-φ17.5
5	IMD100-80-160F	1295	1250	740	108	490	440	480	260	100	100	220	180	8-φ18	80	200	160	8-φ18
