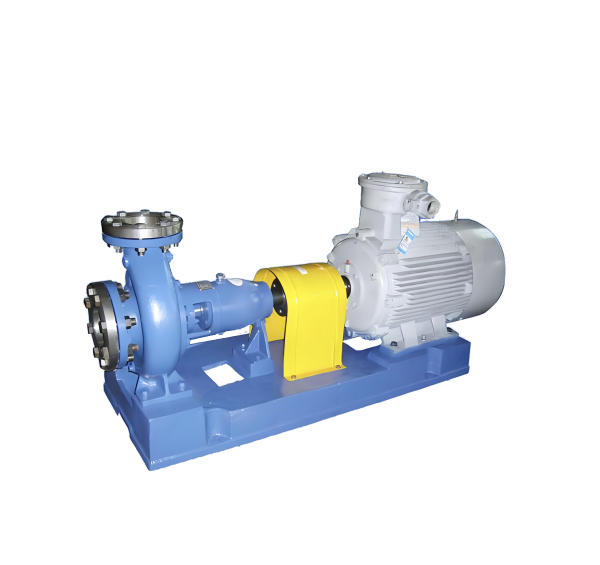

CZ Standardized Chemical Centrifugal Pump

Brand：YI PUMP VALVE
Type：CZ
PN/H：3~84米
Heat：-80℃~+300℃
Connection Type：flange

Product Name：CZ Standardized Chemical Centrifugal Pump
Diameter：13~1700吨/每小时
Material：Cast iron, alloy steel, stainless steel, etc
Driven Mode：motor drive
Applicable Scope：Suitable for transporting low-temperature or high-temperature liquids; Neutral or corrosive liquids; Clean or liquid containing solid particles.

Product Overview
Performance Data
Size Weight

CZ Standardized Chemical Centrifugal Pump

1、Genera

The standard chemical pump of Model-CZ series is a horizontal,single-stage,and single-suction centrifugal pump,its sizeand property conform to the DlN 24256/1SO2858 standard.

The standard chemical pump of Model-CZ series have all those properties of thestandard chemical pump of Model-lH seriesits efficiency and cavitation property are be-tter,and it is alternative with the latter.

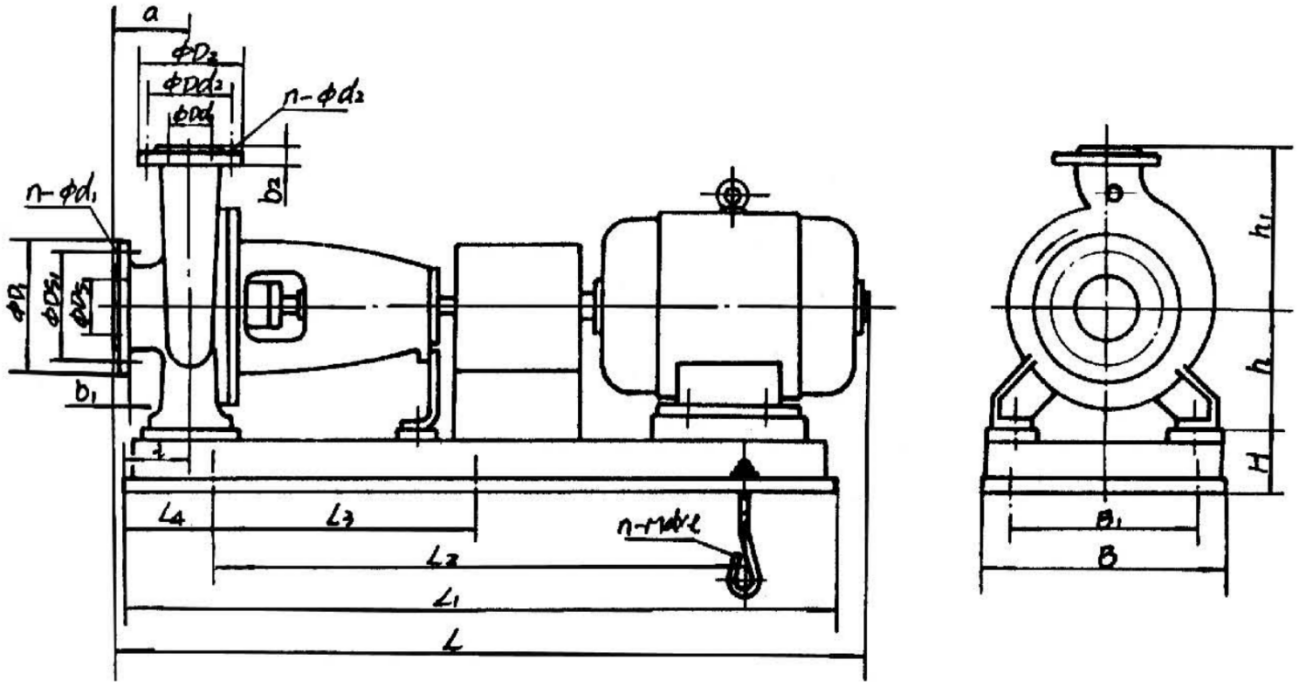

CZ Standard Chemical Centrifugal Pump Product Drawing

2.Usage

It is used for transmission of low ohigh temperature liquids,neutral or corros-ive liquids,clean or solid-granular-containingliquids.It is specially suitable for:

Chemical and petrochemical industries

Oil refinery plants

Paper mills and paper pulp industriesSugar industries

3.Properties

Capacity(Q)(subject to the operationspeed,refer to the diagram of propertiesin page 2)max.2000m°/h

Head (H):max.160m

Operation pressure(P):2.5MPa

Operation temperature(t):-80℃~+300℃Its characteristics curve is even,itsvalue of cavitation is low,and it has highefficiency and maintains these propertieseven if not fully loaded.

4.Characteristics of design

The pressure force to the shaft soal isbalanced by the expeller or the balancinghole on the impeller.The shaft seal can besealed with soft stuffing materials(cooled ornot cooled )as well as single or double-end-faced ).The ball-bearingis endurable and thediameter of the shaft is abundance to guara-ntee the stable running.The casing of somespecifications is designed into the shape ofdouble volute casing to balance the radiaforce.The support stand of bearing, includingthe shaft,impeller, stuffing box,etc.,forms acombined unit so that the casing is not neededto be dismantled forms a combined unit sothat the casing is not needed to be disma-ntled from the pipes during maintenance(if lengthened shaft coupling is used,the mo-tor is not needed to be dismantled too).The flanges adopt two kinds, PN16 and PN25(according to the difference of the materials)Moreover,it can be used at ANSl125 psi or150 psi.

5.Transmission media

Inorganic or organic acids of different te-mperatures and concentrations,such as sulfateacid,nitrate acis ,hydrochloric acid, and pho-sphorus acid,etc.

Alkaline solutions of differcnt temperaturesand concentrations such as sodium hydroxideand sodium carbonate ,etc.

Various salt solutions.

Various liquid petrochemical products ,organic chemical compounds,and other corr-osive raw materials and products.

At present,the anti-corrosive materialsof our factory can meet the requirements ofthe various above-mentioned. When placingthe order,customers are suggested to prov-ide the detailed information of the medium tobe transmitted.

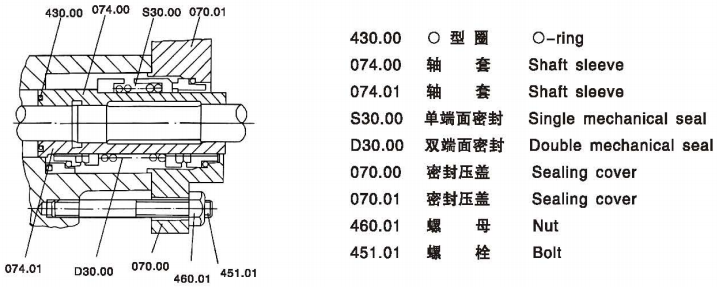

6.mechanical seal

8.Material and test pressure

泵体、泵盖材料Casing and Stuffing box housing	试验压力Test pressure
I类Type 1.4321(B),1.4308(304),1.4446(304L)Ⅱ类Type 1.4410(M),1.4408(316),1.6902(316L),2.4879(804)1.4500(904),1.4536(904L)钛及钛合金Titanium and titanium alloy	2.7MPa
Ⅲ类Type E H T20 - 40	2.1MPa
IV类Type ZG25	3.75MPa
V类Type ZG1Cr13

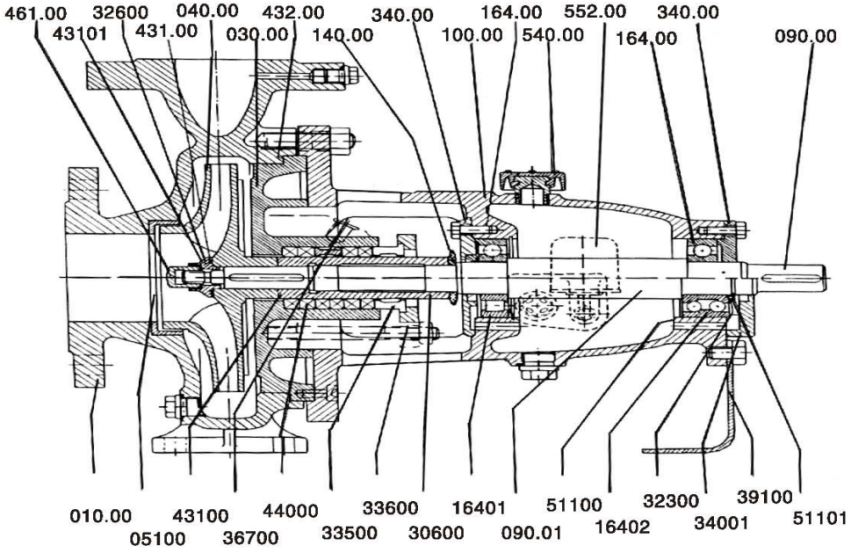

9.Sectional drawing and part number

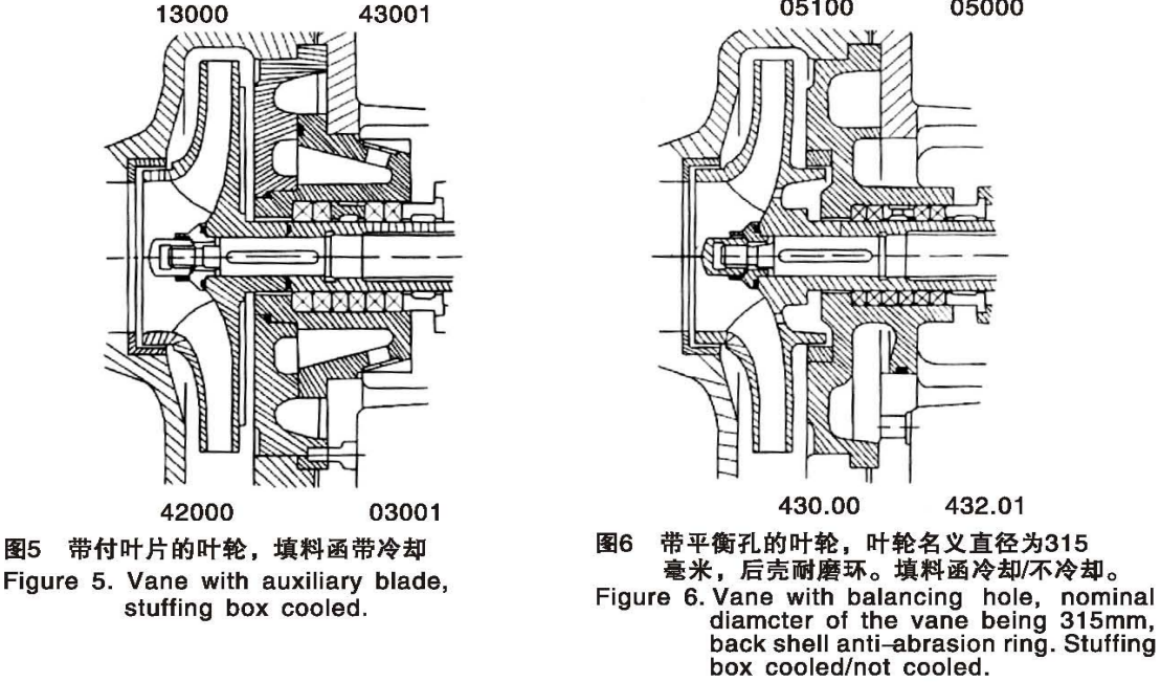

Figure 4.Vane auxiliary bladc,stuffing box not cooled.

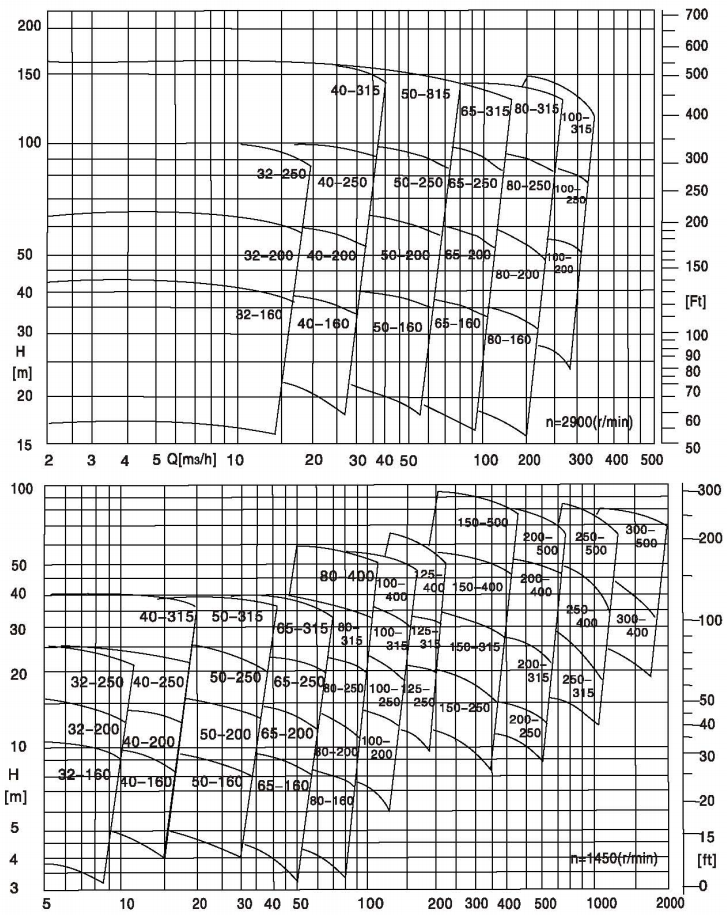

10.Performance Curve

11.Model and Performance Parameter Table

型号 Mode	叶轮型式	泵额定转速n=2900r/min Speed										泵额定转速n=1450r/min Speed
		流量Q m3/h	扬程Hm	蚀余量 PS m	效率n %	比量y=1.00		比重y=1.35		比重y=1.84		流量 Q m²/n	扬禮H m	汽蚀余量NPSH	效率η %	比重y=1.00		比重γ=1.35		比重γ=1.84
						电机功率及型号 Motor										电机功率及型号 Motor
						kw		kw		kw						kw		kw		kw
CZ32-160	A	20	36	3.1	62	4	Y112M-2	5.5	Y13281-2	7.5	Y132S2-2	11	θ	1.5	49	1.1	Y90S-4	1.1	Y908-4	1.5	Y90L-4
	B	18	32			4	Y112M-2	5.5	Y132S1-2	7.5	Y132S2-2	10	8							1.5	Y90L-4
	C	17	28			3	Y100L-2	4	Y112M-2	5.5	Y132S1-2	9	7							1.1	Y90S-4
	D	15	20			2.2	Y90L-2	3	Y100L-2	4	Y112M-2	6	5
	E	13	14			2.2	Y90L-2	3	Y100L-2	4	Y112M-2	6	3
CZ32-200	A	20	50	2.7	51	7.5	Y132Sz-2	11	Y160M1-2	15	Y160M2-2	10	13	1	47	1.5	Y90L-4	1.5	Y90L-4	2.2	Y100L1-4
	B	18	48			7.5	Y132Sz-2	11	Y160M1-2	11	Y160M1-2	9	12							1.5	Y9OL-4
	c	16	40			5.5	Y132S1-2	7.5	Y13282-2	11	Y160M1-2	8	10
	D	15	30			4	Y112M-2	5.5	Y132S1-2	7.5	Y132Sz-2	8	8
CZ32-250	A	20	85	2.1	40	15	Y160M2-2	8.5	Y160L-2	30	Y200L1-2	11	20	0.9	37	2.2	Y100L1-4	3	Y100L2-4	4	Y112M-4
	B	20	75			15	Y160M2-2	8.5	Y160L-2	30	Y200L1-2	10	19					3	Y100L2-4	4	Y112M-4
	C	18	65			11	Y160M1-2	15	Y160M2-2	18.5	Y160L-2	9	15					2.2	Y100L1-4	3	Y100L2-4
	D	15	50			7.5	Y132S2-2	11	Y160M1-2	15	Y160M2-2	8	11					2.2	Y100L1-4	2.2	Y100L1-4
CZ40-160	A	30	34	1.5	63	7.5	Y132Sz-2	11	Y160M1-2	15	Y160Mz-2	15	8	0.5	60	1.1	Y90S-4	1.1	Y90S-4	1.5	Y90L-4
	B	28	30			5.5	Y132S1-2	7.5	Y13282-2	11	Y160M1-2	15	7							1.5	Y90L-4
	C	16	26			5.5	Y132S1-2	5.5	Y13281-2	7.5	Y13282-2	14	6							1.	Y90S-4
	D	14	18			3	Y100L-2	5.5	Y13281-2	5.5	Y132S1-2	12	4							1.	Y90S-4
CZ40-200	A	34	50	2.4	60	11	Y160M1-2	15	Y160M2-2			16	13	1.1	57	1.5	Y90L-4	1.5	Y90L-4	2.2	Y100L1-4
	B	30	48			7.5	Y132Sz-2	11	Y160M1-2	15	Y160M2-2	15	12			1.1	Y90S-4	1.5	Y90L-4	2.2	Y100L1-4
	c	28	38			5.5	Y132S1-2	7.5	Y13282-2	11	Y180M1-2	14	9					1.1	Y90S-4	1.5	Y90L-4
	D	22	30			5.5	Y132S1-2	7.5	Y13282-2	11	Y180M1-2	12	7					1.1	Y90S-4	1.1	Y90S-4
CZ40-250	A	36	85	6	50	22	Y180M-2	30	Y200L1-2	45	Y225M-2	20	21	2.5	48	4	Y112M-4	5.5	Y132S-4	5.5	Y1328-4\|
	B	34	80			18.5	Y160L-2	22	Y180M-2	37	Y200Lz-2	18	20			3	Y100L-4	4	Y112M-4	5.5	Y1328-4\|
	C	30	65			15	Y160M2-2	18.5	Y160L-2	30	Y200L1-2	16	15			2.2	Y100L1-4	3	Y100Lz-4	4	Y112M-4
	D	26	50			11	Y160M1-2	15	Y160Mz-2	18.5	Y160L-2	13	12			2.2	Y100L1-4	2.2	Y100L1-4	2.2	Y100L1-4
CZ40-315	A	46	140	4	50	45	Y225M-2	55	Y250M-2			22	36	1	45	11	Y160M-4	11	Y160M-4	11	Y160M-4
	B	44	130			37	Y200Lz-2	45	Y225M-2			22	32			5.5	Y132S-4	11	Y160M-4
	C	40	100			30	Y200L1-2	37	Y200L2-2	37	Y200L2-2	20	24			4	Y112M-4	5.5	Y1328-4
	D	34	80			30	Y200L1-2	30	Y200L1-2	37	Y200Lz-2	18	18			4	Y112M-4	4	Y112M-4	5.5	Y132S-4
CZ50-160	A	55	34	2.9	73	11	Y160M1-2	11	Y160M1-2	15	Y160M2-2	30	8	1.6	70	1.5	Y90L-4	2.2	Y100L1-4	3	Y100Lz-4
	B	50	30			7.5	Y132S2-2	11	Y160M1-2	15	Y160M2-2	26	7			1.1	Y90S-4	1.5	Y90L-4	2.2	Y100L1-4
	c	46	26			5.5	Y132S1-2	7.5	Y13282-2	11	Y160M1-2	24	6					1.1	Y90S-4	1.5	Y90L-4
	D	40	18			5.5	Y132S1-2	5.5	Y13281-2	7.5	Y132S2-2	20	4					1.1	Y90S-4	1.1	Y90S-4

Model and Performance Parameter Table 2

型号 Modo	叶轮型式	泵额定转速n=2900r/min Speed										泵额定转速n=1450r/min Speed
		施量Q m3/h	扬程H m	汽地余量NPSH m	效率η%	比置y=1.00		比置y=1.35		比重y=1.84		流量Q m3/h	扬程H m	汽蚀余量 NPSH m	效率η%	比重y=1.00		比重y=1.35		比重y=1.84
						电机功率及型号 Motor										电机功率及型号 Motor
						kw		kw		kw						kw		kw		kw
CZ50-200	A	65	56	4	72	18.5	Y160L-2					34	14	1.5	70	3	Y100L2-4	4	Y112M-4	5.5	Y1328-4
	B\|	65	50			15	Y160Mz-2	18.5	Y160L-2			32	12			2.2	Y100L1-4	3	Y100L2-4	4	Y112M-4
	c	50	40			11	Y160M1-2	15	Y160M2-2	18.5	Y160L-2	30	10			1.5	Y90L-4	2.2	Y100L1-4	3	Y100L2-4
	D	40	32			7.5	Y132S2-2	11	Y160M1-2	15	Y160Mz-2	24	7			1.5	Y90L-4	1.5	Y90L-4	2.2	Y100L1-4
CZ50-250	A	65	85	3	64	30	Y200L1-2	37	Y200L2-2	45	Y225M-2	34	21	1.1	59	5.5	Y132S-4	5.5	Y132S-4	11	Y160M-4
	B	60	80			30	Y200L1-2	37	Y200L2-2	45	Y225M-2	30	20			4	Y112M-4	5.5	Y132S-4	11	Y160M-4
	c\|	55	65			22	Y180M-2	30	Y200L1-2	37	Y200Lz-2	26	16			3	Y100L2-4	4	Y112M-4	5.5	Y132S-4
	D	45	80			15	Y160M2-2	15	Y160M2-2	22	Y180M-2	24	12			2.2	Y100L1-4	3	Y100L2-4	4	Y112M-4
CZ50-315	A	80	140	5	60							42	36	1.8	58	11	Y160M-4	11	Y160M-4	15	Y160L-4
	B\|	75	135			55	Y250M-2					42	32							15	Y160L-4
	c\|	70	110			45	Y225M-2					40	26							11	Y160M-4
	D	65	85			37	Y200L2-2	45	Y225M-2			36	20							11	Y160M-4
CZ65-160	A	100	32	3	74	15	Y160M2-2	18.5	Y160L-2			50	B	1.5	68	2.2	Y100L1-4	3	Y100L2-4	4	Y112M-4
	B\|	90	32			15	Y160M2-2	18.5	Y160L-2	22	Y180M-2	48	7					3	Y100L2-4	4	Y112M-4
	c\|	90	24			11	Y160M1-2	15	Y160M2-2	18.5	Y160L-2	46	6					2.2	Y100L1-4	3	Y100L2-4
	D	80	14			5.5	Y132S1-2	7.5	Y132S2-2	11	Y160M1-2	38	4					2.2	Y100L1-4	3	Y100L2-4
CZ65-200	A	100	54	3.2	73	22	Y180M-2	30	Y200L1-2	37	Y200L2-2	50	13	1	73	4	Y112M-4	4	Y112M-4	5.5	Y132S-4
	B	90	50			22	Y180M-2	30	Y200L1-2	37	Y200L2-2	46	12			3	Y100L2-4	4	Y112M-4	5.5	Y132S-4
	c	90	40			18.5	Y160L-2	22	Y180M-2	30	Y200L1-2	42	10			3	Y100L2-4	3	Y100Lz-4	4	Y112M-4
	D\|	70	30			11	Y160M1-2	15	Y160M2-2	18.5	Y160L-2	36	7			2.2	Y100L1-4	2.2	Y100L1-4	3	Y100L2-4
CZ65-250	A	115	85	3.4	71	45	Y225M-2	55	Y250M-2			54	21	0.9	67	11	Y160M-4	11	Y160M-4	11	Y160M-4
	B	115	75			45	Y225M-2	55	Y250M-2			50	20			5.5	Y132S-4	11	Y160M-4
	C	100	65			37	Y200L-2	45	Y225M-2	55	Y250M-2	46	16			4	Y112M-4	5.5	Y1328-4
	D	80	50			30	Y200L1-2	30	Y200L1-2	37	Y200L2-2	40	10			4	Y112M-4	4	Y112M-4	5.5	Y1328-4
CZ65-315	A\|	135	135	5.5	66	90	Y280M-2	110	Y315S-2	160	Y315Mz-2	64	32	1.3	62	11	Y160M-4	15	Y160L-4	18.5	Y180M-4
	B	130	125			90	Y280M-2	110	Y315S-2	160	Y315Mz-2	61	30					15	Y160L-4	18.5	Y180M-4
	c	115	115			75	Y2808-2	90	Y280M-2	132	Y315M1-2	56	28					11	Y160M-4	15	Y160L-4
	D	110	110			65	Y250M-2	75	Y280S-2	110	Y3158-2	54	24							15	Y160L-4
	E\|	90	85			45	Y225M-2	55	Y250M-2	75	Y2808-2	50	20			5.5	Y132S-4			11	Y180M-4
	F	75	70			30	Y200L1-2	45	Y225M-2	55	Y250M-2	52	16			5.5	Y132S-4	5.5	Y1328-4	11	Y180M-4
CZ80-160	A	170	30	4.2	76	22	Y180M-2	30	Y200L1-2	37	Y200L2-2	75	B	2.2	70	3	Y100L2-4	4	Y112M-4	5.5	Y1328-4
	B	160	26			18.5	Y160L-2	22	Y180M-2	30	Y200L1-2	70	7			3	Y100L2-4	3	Y100L-4	4	Y112M-4
	C	150	22			15	Y160M2-2	18.5	Y160L-2	30	Y200L1-2	70	5			2.2	Y100L1-4	3	Y100L-4	4	Y112M-4
	D	130	16			11	Y160M1-2	15	Y160M2-2	18.5	Y160L-2	65	4			2.2	Y100L1-4	2.2	Y100L1-4	2.2	Y100L1-4

Model and Performance Parameter Table 3

型号 Model	叶轮型式	泵额定转速n=2900r/min Speed										采额定转速n=1450r/min Speed
		流量Q m3/h	扬程H m	汽蚀余量NPSHm	效車 η %	比重γ=1.00		比重y=1.35		比重y=1.84		流量 Q m3/h	扬程H m	气蚀余量 NPSHm	效率η %	比重y=1.00		比重y=1.35		比重y=1.84
						电机功率及型号 Motor										电机功率及型号 Motor
						kw		kw		kw						kw		kw		kw
CZ80-200	A	150	50	3.8	79	37	Y200L-2	45	Y225M-2	55	Y250M-2	80	12	1.9	73	5.5	Y132S-4	11	Y160M-4	11	Y160M-4
	B	140	46			30	Y200L1-2	37	Y200L2-2			75	11			4	Y112M-4	5.5	Y132S-4	11	Y160M-4
	C	130	38			22	Y180M-2	30	Y200L1-2			65	9			3	Y100L2-4	4	Y112M-4	5.5	Y1328-4
	D	110	26			15	Y160Mz-2	18.5	Y160L-2	30	Y200L1-2	60	6			3	Y100L2-4	3	Y200L2-4	4	Y112M-4
CZ80-250	A	190	80	5	80							90	20	1.3	78	11	Y160M-4	11	Y160M-4	15	Y160L-4
	B	180	75			55	Y250M-2					90	19
	C	170	70			45	Y225M-2					85	17
	D	150	55			37	Y200L-2	55	Y250M-2	75	Y280S-2	75	14			5.5	Y132S-4			11	Y160M-4
	E	130	47			30	Y200L1-2	37	Y200L2-2	55	Y250M-2	70	11			5.5	Y132S-4	5.5	Y132S-4	11	Y160M-4
CZ80-315	A	200	130	5.5	76.5	110	Y315S-2	160	Y315M2-2			100	32	1.3	72.5	15	Y160L-4	18.5	Y180M-4	30	Y200L-4
	B	180	125			110	Y315S-2	132	Y315M1-2			95	30					18.5	Y180M-4	30	Y200L-4
	C	160	100			75	Y280S-2	90	Y280M-2	132	Y315M1-2	85	24					15	Y160L-4	18.5	Y180M-4
	D	150	75			55	Y250M-2	75	Y280S-2	90	Y280M-2	70	18					15	Y160L-4	15	Y160L-4
CZ80-400	A											105	52	1.2	63	30	Y200L-4	37	Y225S-4
	B											100	50					37	Y225S-4
	C											90	44					30	Y200L-4
	D											80	38			8.5	Y180M-4	30	Y200L-4
	E											75	30			8.5	Y180M-4	18.5	Y180M-4	30	Y200L-4
CZ100-200	A	220	45	4	81	45	Y225M-2	55	Y250M-2			115	11	1.2	80	5.5	Y132S-4	11	Y160M-4	11	Y160M-4
	B	200	40			30	Y200L1-2	45	Y225M-2	55	Y250M-2	00	10					11	Y160M-4	11	Y160M-4
	c	180	30			22	Y180M-2	30	Y200L1-2	45	Y225M-2	90	8					5.5	Y132S-4	5.5	Y132S-4
	D	150	25			22	Y180M-2	30	Y200L1-2	37	Y200L2-2	80	6					5.5	Y132S-4	5.5	Y132S-4
CZ100-250	A	280	75	4.9	81.5	90	Y280M-2	110	Y315S-2	160	Y315M2-2	130	20	1.2	75.5	15	Y160L-4	30	Y200L-4	30	Y200L-4
	B	250	70			75	Y280S-2	110	Y315S-2	132	Y315M1-2	130	18			11	Y160M-4	15	Y160L-4	30	Y200L-4
	C	230	55			55	Y250M-2	75	Y280S-2	110	Y3158-2	120	14					11	Y160M-4	15	Y160L-4
	D	200	40			37	Y200L2-2	55	Y250M-2	75	Y280S-2	100	10					11	Y160M-4	11	Y160M-4
CZ100-315	A	270	135	5.5	75.5	160	Y315M2-2					132	32	1.5	72	30	Y200L-4	30	Y200L-4
	B\|	250	130			132	Y315M1-2					120	30			18.5	Y180M-4	30	Y200L-4	30	Y200L-4
	c	230	100			110	Y315S-2	132	Y315M1-2			100	26			15	Y160L-4	15	Y160L-4	30	Y200L-4
	D	200	85			75	Y280S-2	110	Y315S-2	132	Y315M1-2	90	21			15	Y160L-4	15	Y160L-4	8.5	Y180M-4
CZ100-400	A											150	50	2	70	45	Y225M-4	45	Y225M-4
	B											140	48			30	Y200L-4	45	Y225M-4
	C											120	40			30	Y200L-4	30	Y200L-4	45	Y225M-4
	D											100	30			18.5	Y180M-4	30	Y200L-4	30	Y200L-4

Model and Performance Parameter Table 4

型号Model	叶轮型式	泵额定转速n-2900r/min Speed							泵额定转速n-1450r/min Speed
		流量 Q m3/h	扬程H m	汽城余量 NPSH m	效率 η %	比置y=1.00	比重γ=1.35	比置y=1.84	流量Q m3/h	扬程H m	汽蚀余量NPSH m	效率 η %	比置y=1.00		比重γ=1.35		比重y=1.84
						电机功率及塑号 Motor							电机功率及型号 Motor
						kw	kw	kw					kw		kw		kw
CZ125-250	A								200	20	2.2	84	18.5	Y180M-4	22	Y180L-4
	B								200	18			15	Y160L-4	18.5	Y180M-4
	C								190	14			11	Y160M-4	15	Y160L-4
	D								160	10			11	Y160M-4	11	Y160M-4	15	Y160L-4
CZ125-315	A								200	30	2	79	30	Y200L-4	37	Y225S-4	45	Y225M-4
	B								180	30			30	Y200L-4	30	Y200L-4	37	Y225S-4
	C								170	24			18.5	Y180M-4	30	Y200L-4	30	Y200L-4
	D								100	18			15	Y160L-4	18.5	Y180M-4	30	Y200L-4
CZ125-400	A								220	50	2.2	74.5	55	Y250M-4	75	Y280S-4
	B								200	48			45	Y225M-4	75	Y280S-4
	C								180	46			37	Y225S-4	55	Y250M-4
	D								170	42			30	Y200L-4	45	Y225M-4
	E								150	36					30	Y200L-4
	F								150	30					30	Y200L-4
CZ150-250	A								320	17	3.5	83	22	Y180L-4	30	Y200L-4	37	Y2258-4
	B								300	15			18.5	Y180M-4
	C								280	13			18.5	Y180M-4
	D								260	12			15	Y160L-4	18.5	Y180M-4	30	Y200L-4
	E								240	11			11	Y160M-4	15	Y160L-4	22	Y180L-4
CZ150-315	A								380	30	3	82.5	45	Y225M-4	76	Y280S-4
	B								340	26			37	Y225S-4	45	Y225M-4
	C								320	20			-30	Y200L-4	37	Y225S-4	55	Y250M-4
	D								300	17			22	Y180L-4	30	Y200L-4	37	Y2258-4
CZ150-400	A								400	48	4.3	80	75	Y280S-4	110	Y315S-4
	B								340	40			55	Y250M-4	75	Y280S-4
	C								300	34			45	Y225M-4	75	Y280S-4	90	Y2B0M-4
	D								260	28			37	Y2258-4	45	Y225M-4	75	Y2808-4
CZ150-500	A								420	80	2.5	78	132	Y315M1-4
	B								400	70			110	Y315S-4	160	Y315M2-4
	C								380	65			110	Y315S-4	132	Y315M1-4
	D								340	50			75	Y2808-4	110	Y3158-4	132	Y315Mi-4
	E								300	45			55	Y250M-4	75	Y280S-4	110	Y3158-4
CZ200-250	A								600	12	3.5	85	30	Y200L-4	37	Y2258-4
	B								540	11			22	Y180L-4	30	Y200L-4
	C								500	10			22	Y180L-4	30	Y200L-4	37	Y2258-4

Model and Performance Parameter Table 5

型号Model	叶轮型式	泵额定转速n-2900r/min Speed							泵额定转速n-1450r/min Speed
		流量 Q m3/h	扬程H m	汽城余量 NPSH m	效率 η %	比置y=1.00	比重γ=1.35	比置y=1.84	流量Q m3/h	扬程H m	汽蚀余量NPSH m	效率 η %	比置y=1.00		比重γ=1.35		比重y=1.84
						电机功率及塑号 Motor							电机功率及型号 Motor
						kw	kw	kw					kw		kw		kw
CZ200-315	A								650	24	4	83.5	55	Y250M-4	75	Y280S-4
	B								60	20			55	Y250M-4	75	Y280S-4
	C								550	16			37	Y225S-4	45	Y225M-4
	D								500	13			30	Y200L-4	37	Y225S-4	55	Y250M-4
CZ200-400	A								650	52	3.5	84	132	Y315M1-4
	B								560	45			90	Y280M-4	132	Y315M1-4
	C								500	40			75	Y280S-4	110	Y315S-4	160	Y315M2-4
	D								450	30			55	Y250M-4	75	Y280S-4	110	Y3158-4
CZ200-500	A								70	75	3	81.5
	B								850	65			160	Y315M2-4
	c								550	55			110	Y250M-4	180	Y315M2-4
	D								450	40			75	Y280S-4	110	Y315S-4	132	Y315M1-4
CZ250-315	A								950	22	5	86	75	Y280S-4	110	Y3158-4
	B								900	20			75	Y280S-4	90	Y280M-4
	c								800	16			55	Y250M-4	75	Y280S-4
	D
CZ250-400	A								1000	44	6	83	160	Y315M2-4
	B								900	38			132	Y315M1-4
	c								850	30			110	Y315S-4	160	Y315M2-4
	D								600	24			90	Y280M-4	110	Y3158-4	180	Y315M2-4
CZ250-500	A								200	80	6	85
	B								100	70
	C								000	55
	D								850	45			160	Y315M2-4
CZ300-400	A								500	40	6	87
	B								1400	30			160	Y315M2-4
	c								1300	25			132	Y315M1-4
	D								300	20			110	Y315S-4	160	Y315M2-4
CZ300-500	A								1700	70	6	83.5
	B								500	60
	c								300	50
	D								100	40

Explanation:”The impaller type should be indicated in addition tothe pump modol in the purchasing contract,for oxample,f CZ40-250 is selected and the impeller type is“A°,it should be indicated as CZ40-250A.*For a pump listed n the table which has quantity of flow and dellvery head but no value of powerit shouldbe discussed and decided when placing the order.

12.Figure of installation of standard chemical pump of Model-CZ series

13.CZ Standardized Chemical Pump Installation Dimensional Table

泵型号Model of pump	φDs1	φDs1	φD	φb1	n-φd1	ODd	φDd2	φD₂	φb2	n-φd2
CZ65-315ANSI150RF	100100	190191	235	24	8-φ228-φ19	6565	145140	185	22	8-φ17.5 4-φ19
CZ80-160ANSI150RF	125125	220216	270	26	8-φ268-φ22	8080	160152	200	22	8-φ17.5 4-φ19
CZ80-200ANSI150RF	125125	220216	270	26	8-φ268-φ22	8080	160152	200	24	8-φ17.5 4-φ19
CZ80-250	125	220	270	26	8-φ26	80	160	200	24	8-φ17.5
CZ80-315ANSI150RF	125125	220216	270	26	8-φ268-φ22	8080	160152	200	24	8-φ17.5 4-φ19
CZ80-400ANSI150RF	125125	220216	270	26	8-φ268-φ22	8080	160152	200	24	8-φ17.5 4-φ19
CZ100-200	125	220	270	26	8-φ26	100	190	235	24	8-φ22
CZ100-250ANSI150RF	125125	220216	270	26	8-φ268-φ22	100100	190191	235	24	8-φ228-Φ19
CZ100-315ANSI150RF	125125	220216	270	26	8-φ268-φ22	100100	190191	235	24	8-φ228-φ19
CZ100-315ANSI150RF	125125	220216	270	26	8-φ268-φ22	100100	190191	235	24	8-φ228-φ19
CZ100-400ANSI150RF	125125	220216	270	26	8-φ268-φ22	100100	190191	235	24	8-φ228-φ19
CZ125-250ANSI125EF	150150	250241	300	28	8-φ268-φ22	125125	220216	270	26	8-φ268-φ22
CZ125-315ANSI150RF	150150	250241	300	28	8-φ268-φ22	125125	220216	270	26	8-φ268-φ22
CZ125-400ANSI150RF	150150	250241	300	28	8-φ268-φ22	125125	220216	270	26	8-φ268-φ22

CZ Standardized Chemical Pump Installation Dimensional Table2

泵型号Model of pump	φDs1	φDs1	φD1	φb1	n-φd1	φDd	φDd2	φD2	Ob2	n-φd2
CZ150-250ANSI150RF	200200	310298	360	30	12-φ26 8-φ22	150150	250241	300	28	8-φ268-φ22
CZ150-315ANSI150RF	200200	310298	360	30	12-φ26 8-φ22	150150	250241	300	28	8-Φ268-φ22
CZ150-400ANSI150RF	200200	310298	360	30	12-φ26 8-φ22	150150	250241	300	28	8-φ268-φ22
CZ150-500	200	310	360	30	12-φ26	150	250	300	28	8-φ26
CZ150-500	200	310	360	30	12-φ26	150	250	300	28	8-φ26
CZ200-250ANSI150RF	200200	310298	360	30	12-φ26 8-φ22	200200	310298	360	30	12-φ26 8-φ22
CZ200-315ANSI150RF	250250	370362	425	32	12-φ3012-φ26	200200	310298	360	30	12-φ26 8-φ22
CZ200-400	250	370	425	32	12-φ30	200	310	360	30	12-φ26
CZ200-500	250	370	425	32	12-φ30	200	310	360	30	12-φ26
CZ250-315ANSI150RF	300300	430432	485	34	16-φ3012-φ26	250250	370362	425	32	12-φ3012-φ26
CZ250-400ANSI150RF	300300	430432	485	34	16-φ3012-φ26	250250	370362	425	32	12-φ3012-φ26
CZ250-500CZ300-400	300350	430490	485555	3438	16-φ3016-φ33	250300	370430	425485	3234	12-φ3016-φ30
CZ300-500	350	490	555	38	16-φ33	300	430	485	34	16-φ30

CZ Standardized Chemical Pump Installation Dimensional Table3

泵型号Model of pump	电机机座号 Number of he M01or bas9	a	h	hi	L	L1	L2	L3	L4	B	B1	n-Mdxl	H		质(重)量 Qutyagh9Kg
CZ32-160ANSI150RF	90S	80	132	160	915	900	600		150	390	350	4-M12×220	125	75	120
	90L				940										123
	100L				985										131
	112M				1005										143
	1328				1080	1000	660		170						182
CZ32-200ANSI150RF	90L	80	160	180	940	900	600		150	390	350	4-M12×220	125	75	129
	100L				985										137
	112M				1005										149
	132S				1080	1000	660		170						194
	160M				1205	1120	740		190						305
CZ32-250ANSI125EF	90S	100	180	225	1050	1000	660		170	390	350	4-M12×220	125	90	196
	9OL				1070										199
	100L				1120	1120	740		190						196
	112M				1140										208
	132S				1215										233
	160M				1340	1250	840		205						279
	180L				1385										301
	200L				1515	1400	940		230	440	400	4-M16×220	170		451
CZ40-160ANSI150RF	90S	100	132	160	915	900	600		150	390	350	4-M12×220	125	75	122
	90L				940										125
	100L				985										133
	112M				1005										145
	1328				1080	1000	660		170						184
	160M				1205	1120	740		190						246
CZ40-200ANSI150RF	90S	100	160	180	935	900	600		150	390	350	4-M12×220	125	75	143
	90L				960										146
	100L				1005										154
	112M				1025										166
	1328				1100	1000	660		170						199
	160M				1225	1120	740		190						286
CZ40-250ANSI150RF	90S	100	18	0\|22	1050	1000	660		170	390	350	4-M12x220	125	90	195
	90L				1070										198
	100L				1120	1120	740		190						194
	112M				1140										206
	132S				1215										231
	160M				51340	1250	840		205						282
	160L180M200L				1385										304
					1410	1400	940		230				140	100	343
					1515	1400	940		230	440	400	4-M16×220	170	90	449
	225M				1555										518
CZ40-315ANSI150RF	112M	125	200	250	1165	1120	740		190	390	350	4-M12×220	125	105	235
	132S				1240										260
	160M				1365	1250	840		205						311
	160L180M200L				410										333
					1435	1400	940		230		400490	4-M16×220	140	05	371
					1540					440					473
	225M				1580					530			170		547
	250M				1695	1600	1060	530	270	600	550	6-M16×220	190		775
CZ50-160ANSI150RF	90S	100	160	180	935	900	600		150	390	350	4-M12×220	125	75	137
	90L				960										140
	100L				1005										148
	112M				1025										160
	132S				1100	1000	660		170						193
	160M				1225	1120	740		190						249
CZ50-200ANSI150RF	90S	100	160	200	935	900	600		150	390	350	4-M12×220	125	75	143
	9OL				960										146
	100L				1005										154
	112M				1025										166
	132S				1100	1000	660		170						199
	160M				1225	1120	740		190						255
	160L				1270										277
	T80M				1295	1250	840		205				155		310

CZ Standardized Chemical Pump Installation Dimensional Table4

泵型号Model of pump	电机机座号Nurber of the molo bas0	a	h	h1	L	L1	L2	L3	L4	B	B1	n-Mdxl	H	i	质(互)量QLentt(wgh kg
CZ50-250 ANSI150RF	90S	125	180	225	10751100	1000	680		170	390	350	4-M12×220	125	90	197
	90L														200
	100L				1140	1120	740		190						208
	112M				1165										220
	132S				1245										245
	160M				1365	1250	840		205						290
	160L				1410										312
	180M				1435	1400	940		230				140	100	345
	200L				1540					440	400	4-M16×220	170	90	452
	225M				1580										521
CZ50-315 ANSI150RF	1328	125	225	280	1245	1120	740		190	390	350	4-M12×220	125	90	265
	160M				1365	12501400	840940		205						320
	160L				1410										342
	180M				1435				230			4-M16×220	140	100	375
	200L				1540					440	400		170	90	489
	225M				1580					530	490				547
	250M				1690	1800	1060	530	270	600	550	6-M16×220	190		779
	280S				1765					650	600		320		880
	280M				1815										956
CZ65-160ANSI150RF	90S	100	160	200	1050	1000	660		170	390	350	4-M12×220	125	90	182
	9OL				1070										185
	100L				1120	1120	740		190						183
	112M				1140										195
	132S				1215										220
	160M				1340	1250	840		205						275
	160L				1385										295
	18DM				1410	1400	940		230			4-M18×220	170	100	330
CZ65-200 ANSI150RF	90S	100	180	225	1050	000	660		170	390	350	4-M12×220	125	90	194
	90L				1070										197
	100L				1120	1120	740		190						205
	112M				1140										217
	132S				1215										242
	160M				1340	1250	840		205						287
	160L				1385										309
	180M				1410	1400	940		230			4-M16×220	140	100	342
	200L				1515					440	400		170	90	449
CZ65-250 ANSI150RF	112M	125	200	250	1165	1120	740		190	390	350	4-M12×220	135	105	219
	132S				1245										244
	160M				1365	1250	840		205						299
	160L				1410										321
	18DM				1435	1400	940		230			4-M16×220	140		354
	200L				1540					440	400				461
	225M				1580					530	490		170		530
	250M				1695	1600	1060	530	270	600	550	6-M16×220	230		761
CZ65-315 ANSI150RF	132S	125	225	280	1270	1250	840		205	440	400	4-M12×220	125	105	282
	160M				1395	1400	940		230			4-M16×220	140		406
	160L				1440										428
	18DM				1465										461
	200L				1570								170		521
	225M				1610	1600	1060	530	270	530	490	6-M16×220			617
	250M				1725					600	550		190		813
	280S				1795					650	600		230		913
	28DM				1845										989
	315S				1985	1800	1200	600	300	720	670		250	195	1538
	315M				2035										1718
CZ80-160ANSI150RF	90S	125	180	225	1075	1000	660		170	390	350\|	4-M12×220	125	90	191
	90L				1100										194
	100L				1140	1120	740		190						192
	112M				1165										204
	132S				1245										229
	160M				1365	1250	840		205						284
	160L				1410										306
	180M				1435	1400	940		230			4-M16×220	140	100	339
	200L				1540					440	400		170	105	446

CZ Standardized Chemical Pump Installation Dimensional Table5

泵型号Model of pump	电机机座号 Nurter of the mote bas8	a	h	h1	L	L1	L2	Ls	L4	B	B1	n-Mdxl	H	I	质(三)量 Qunt(m川kg
CZ80-200ANSI150RF	90S	125	180	250	1075	1000	660		170	390	350	4-M12×220	125	90	197
	90L				1100										200
	100L				1140	1120	740		190						208
	112M				1165										220
	132S				1245										245
	160M				1365	1250	840		205						290
	160L				1410										312
	180M				1435	1400	940		230			4-M16×220	140	100	345
	200L				1540					440	400		170	90	452
	225M				1580										521
CZ80-250	132S	125	225	280	1245	1120	740		190	440	400	4-M12×220	125	105	256
	160M				1365	1250	840		205						314
	160L				1410										335
	180M				1435	1400	940		230			4-M16×220	140		412
	200L				1540								170		472
	225M				1580					530	490				534
	250M				1695	1600	1060	530	270	800	550	6-M16×220	190		765
	280S				1765					650	600		230		867
	280M				1815										943
CZ80-315 ANSI150RF	132S	125	250	315[	1270	1250	840		205	440	400	4-M12×220	125	105	340
	160M				1395	1400	940		230			4-M16×220	140		409
	160L				1440										431
	180M				1465										464
	200L				1570								170		524
	225M				1610	1600	1060	530	270	530	490	6-M16×220			629
	250M				1725					800	550		190		814
	280S				1795					650	600670		230		926
	280M				1845										1002
	3158				1985	1800	1200	600	300	720			230	195	1534
	315M				2035										1714

CZ80-400ANSI150RF	132S	125	280	355	1270	1400	940		230	530	490	4-M16×220	140	105	454
	160M				1395										489
	160L				1440										510
	180M				1465										546
	200L				1570										629
	225S				1615	1600	1060	530	270	530	490	6-M16×220	170		657

CZ100-200	132S	125	200	280	1240	1120	740		190	390	350	4-M12×220	125	105	245
	160M				1365	1250	840		205						297
	160L				1410										318
	180M				1435	1400	940		230			4-M16×220	140		422
	200L				1540					440	400				476
	225M				1580					530	490		170		535
	250M				1695	1600	1060	530	270	600	550	6-M16×220	230		767
	280S				1765					650	600		250		869
	280M				1815										945
CZ100-250 ANSI150RF	132S	140	225	280	1285	1250	840		205	440	400	4-M12×220	125	105	303
	160M				1410	1400	940		230			4-M16×220	140		388
	160L				1455										409
	180M				1480										451
	200L				1585								170		534
	225M				1625	1600	1060	530	270	530	490	6-M16×220			599
	250M				1740					600	550		190		795
	280S				1810					650	600		230		895
	280M				1860										871
	315S				2000	1800	1200	600	300	720	670		250	195	1520
	315M				2050										1700
CZ100-315ANSI150RF	1328	140	250	315	1285	1250	840		205	440	400	4-M12×220	125	105	334
	160M				1410	1400	940		230			4-M16x220	140		424
	160L				1455										445
	180M				1480										481

CZ Standardized Chemical Pump Installation Dimensional Table6

泵型号Model of pump	电机机座号 Number of themoior ban0	8	h	h1	L	L1	L2	La	L4	B	B1	n-Mdxl	H	I	质(直)量Cuakg(nl)ywg
CZ100-315ANSI150RF	200L	140	250	315	1585	1400	940		230	440	400	4-M16×220	170	105	572
	225M				1625	1600	1060	530	270	530	400	6-M16×220			636
	250M				1740					600	550		190		849
	280M				1810					650	600670		230		933
	280L				1860										1009
	315S				2000	1800	1200	600	300	720			230	195	1541
	315M				2050										1721
CZ100-400ANSI150RF	160M	140	280	355	1410	1400	940		230270	530	490	4-M16×220	140	125	495
	160L				14551480										516
	180M														552
	200L				1585	1600	1060	530				6-M16×220			653
	225M				1655								170		667
CZ125-250ANSI125EF	1328	140	250	355	1285	1250	840		205	440	400	4-M12×220	125	105	323
	160M				1410	1400	940		230			4-M16×220	140		413
	160L				1455										434
	180M				1480										472
	180L				1520										480
CZ125-315ANSI150RF	160M	140	280	355	1410	1400	940		230270	530	490	4-M16×220	140	125	469
	160L				1455										490
	180M				1480										526
	200L				1585	1600	1060	530				6-M16×220			627
	225S				1630										637
	225M				1655										673
CZ125-400ANSI150RF	160M	140	315	400	1410	1400	940		230	530	490	4-M16×220	140	125	514
	160L				14551480										535
	180M														571
	200L				1585								170		692
	225S				1630										683
	225M				1855	1800	1200	600	300	600	550	6-M16×220	190		719
	250M				1940					600	550		190		907
	280S				2010					650	600		230		998
CZ150-250 ANSI150RF	132S	160	280	375	1345	1400	940		230 270	650	600	4-M16×220	160	125	438
	132M				1386										451
	160M				1470	1600	1060	530				6-M16×220			537
	160L				1515										558
	180M				1540										591
	180L				1580										590
	200L				1645										673
	225S				1690										682
	225M				1715										718
CZ150-315 ANSI150RF	160M	160	315	400	1610	1800	1200	600	300	720	670	6-M16x220	160	125	748
	160L				1655										769
	180M				1680										800
	180L				1720										808
	200L				1785										882
	225S				1830										888
	225M				1855										924
	250M				1940										1023
	280S				2010										1128
CZ150-400 ANSI150RF	180M	160	315	450	1680	1800	1200	600	300	720	670	6-M16×220	160	125	841
	180L				17201785										849
	200L														923
	225S				1830										S29
	225M				18551940										965
	250M														1054
	280S				2010									120	1362
	280M				2060										1467
	315S				22302280	2000	1400	700							1774
	315M														1934
CZ150-500	180M	180	375	500	17001740180518501875	1800	1200	600	300	720	670	6-M16×220	160	125	944
	T80L														952
	200L														1025
	225S														1036
	225M														1072

CZ Standardized Chemical Pump Installation Dimensional Table7

泵型号Model of pump	电机机座号 MLmber of themolor ba80	a	h	h1	L	L1	L2	Ls	L4	B	B1	n-Mdxl	H	1	质(直)量QuentpYwakgh) kg
CZ150-500	250M280S	180	375	500	19602030	2000	1400	700	300	720	670	6-M16×220	160	125	1166
														120	1292
	280M				208022502300	2300	1400	700							1397
	315S												190	210	1917
	315M														2077
CZ200-250ANSI150RF	160M	180	315	425	15201565	1400	940		230	650	600	4-M16×220	160	125	549
	160L														570
	180M				1590163016951740	1600	1060	530	270			6-M16×220			851
	180L														659
	200L														741
	2258S														745
CZ200-315 ANS1150RF	160M	200	355	450	165016951720176018251870	1800	1200	600	300	720	670	6-M16×220	160	125	828
	160L														849
	180M														880
	180L														888
	200L														962
	225S														968
	225M				1895198020502100										1004
	250M														1103
	280S														1228
	280M														1333
CZ200-400	180M	180	355	500	17201760182518701895198020502100	1800	1200	600	300	720	670	6-M16×220	160	125	907
	180L														915
	200L														989
	225S														995
	225M														1031
	250M														1130
	280S													120	1262
	280M														1367
	315S				22702320	2080	1400	700					190	210	1872
	315M														2032
CZ200-500	200L	200	400	560	1875192019452030	1800	1200	600	300	720	670	6-M16×220	160	125	1123
	225S														1129
	225M														1165
	250M														1269
	280S				2100215023202370	2000	1400	700							1535
	280M														1640
	315S													155	1958
	315M														2118
CZ250-315ANSI150RF	200L	250	400	560	1875192019452030	1800	1200	600	300	780	730	6-M20×400	200	155	1113
	225S														1130
	225M														1160
	250M														1274
	280S				2100215023202370	2000	1400	700							1411
	280M														1516
	3158														1845
	315M														2005
CZ250-400AN81150RF	225S	200	375	600	19201940	1800	1200	600	300	870	820	6-M20×400	200	165	1119
	225M														1155
	250M				20302100215023202370	2000	1400	700							1336
	280S														1464
	280M														1569
	315S												230		1893
	315M														2053
CZ250-500 CZ300-400	250M	200 240	425 450	670 700	2030207021002140215021902320238023702110	2000	1400	700	300	870	820	6-M20×400	200	165	1345146
	280S														14731596
	280M														1578170
	315S														19022025
	315M														20622185
CZ300-500	280S	250	450	750	2330238025502600	2240	1600	800	320	970	920	6-M20×400	230	225	1829
	280M														1934
	315S														2258
	315M														2416

The flange size of the input and output ports of Model-CZ pump series

泵型号Model of pump	φDs1	φDs1	φD1	Φb1	n-φd1	φDd	φDd2	φD2	φb2	n-φd2
CZ32-160ANSI150RF	5050	125121	165	20	4-φ17.54-φ19	3232	10098	140	18	4-φ17.5 4-Φ16
CZ32-200ANSI150RF	5050	125121	165	20	4-φ17.5 4-φ19	3232	10098	140	18	4-φ17.5 4-φ16
CZ32-250ANSI125EF	5050	125121	165	20	4-φ17.5 4-φ19	3232	10098	140	18	4-φ17.5 4-φ16
CZ40-160ANSI150RF	6565	145140	185	22	8-φ17.5 4-φ19	4040	11098	150	18	4-φ17.5 4-φ16
CZ40-200ANSI150RF	6565	145140	185	22	8-φ17.5 4-φ19	4040	11098	150	18	4-φ17.5 4-φ16
CZ40-250ANSI150RF	6565	145140	185	22	8-φ17.5 4-φ19	4040	11098	150	18	4-φ17.5 4-φ16
CZ40-315ANSI150RF	6565	145140	185	22	8-φ17.54 - φ 1 9	4040	11098	150	18	4-φ17.54 - 中 1 6
CZ50-160ANSI150RF	8080	160152	200	24	8-φ17.5 4-φ19	5050	125121	165	20	4-φ17.5 4-φ19
CZ50-200ANSI150RF	8080	160152	200	24	8-φ17.5 4-φ19	5050	125121	165	20	4-Φ17.5 4-φ19
CZ50-250ANSI150RF	8080	160152	200	24	8-φ17.5 4-φ19	5050	125121	165	20	4-φ17.5 4-φ19
CZ50-315ANSI150RF	8080	160152	200	24	8-φ17.5 4-φ19	5050	125121	165	20	4-φ17.5 4-φ19
CZ65-160ANSI150RF	100100	190190	235	24	8-φ228-φ19	6565	145140	185	22	8-φ17.5 4-φ19
CZ65-200ANSI150RF	100100	190191	235	24	8-φ228-φ19	6565	145140	185	22	8-φ17.5 4-φ19
CZ65-250ANSI150RF	100100	190191	235	24	8-φ228 - φ1 9	6565	145140	185	22	8-φ17.5 4-φ19

14.Ordering Instructions

1.Pump size,pump material,type of shaftsealing as well as driver should be deter-mined according to service condition .Andcapacity,total head,suction pressur , thename of medium,specific gravity and temperature of medium should be specified when ordering.

2.lf special type motor is required, thecustomer should specify the explosive proffgrade,rated output,freguency and voltage etc.

3.lf the customer requires to select me-chanical sealing.the type and size of mechanical sealing should be specified bycustomer in ordering.

4.The data listed in catalog can be selectedby customer with the range of the perfor-mance and the type of the impeller of theperformance should be specified.

You may also be interested in the following products
