FMB corrosion-resistant and wear-resistant centrifugal pump

Brand：YI PUMP VALVE
Type：FMB
PN/H：3~84米
Heat：-20℃~120℃
Connection Type：flange

Product Name：FMB corrosion-resistant and wear-resistant centrifugal pump
Diameter：2~1150吨/每小时
Material：Fluoroplastic alloy, lined with fluorine
Driven Mode：motor drive
Applicable Scope：Especially suitable for transporting acid, alkaline clear liquid or slurry, corrosive slurry, organic acids, strong oxidants, and various types of wastewater in the environmental protection industry.

Product Overview
Performance Data
Size Weight

FMB corrosion-resistant and wear-resistant centrifugal pump

overview

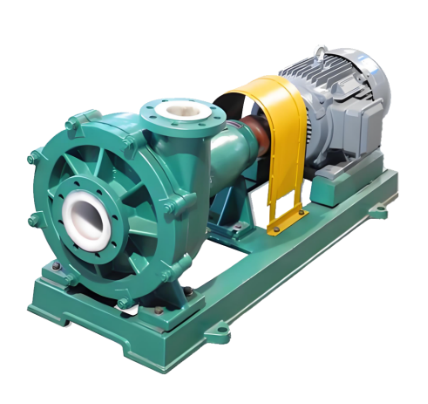

Product diagram of FMB corrosion-resistant, wear-resistant, and high-temperature resistant centrifugal pump

FMB series corrosion resistance-abrasion resistance -high temperature resistant centrifugal pumps. flow components using a new generation of domestic steelliner corrosion resistant alloy .The pump has excellent abrasion resistance, impactresistance.corrosion resistance and high temperature resistance of such outstanding advantages in one, there are three kinds ofsealing structure,designed with K dynamic seal (FMB-ZK).single end face mechanical seal inside (FMB-JND), and double end face mechanical seal inside(FMB-JNS) .Able to apply to all kinds ofworkingconditions.Especially suitable for conveying add and alkaline serum or slurry.smelting industry corrosive slurry, various organic acids. strong oxidizing agents.all kindsof sewage and other environmental protection industry, wide range of applications.

Applicabletemperature:-20'C120'C.

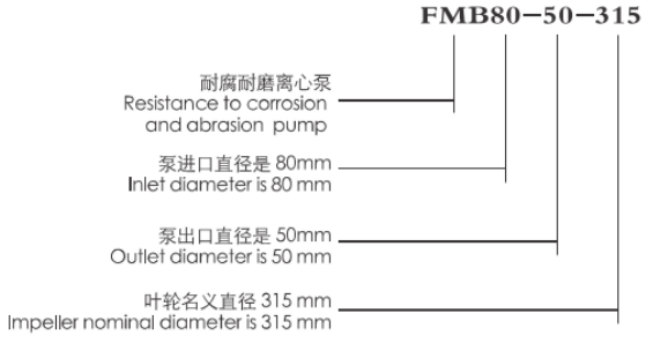

Model Meaning

Structural diagram

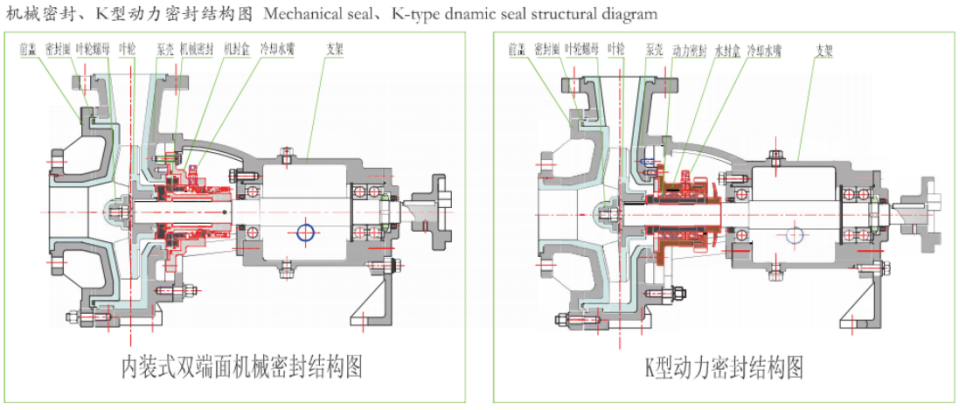

Schematic diagram of mechanical seal and K-type power seal components

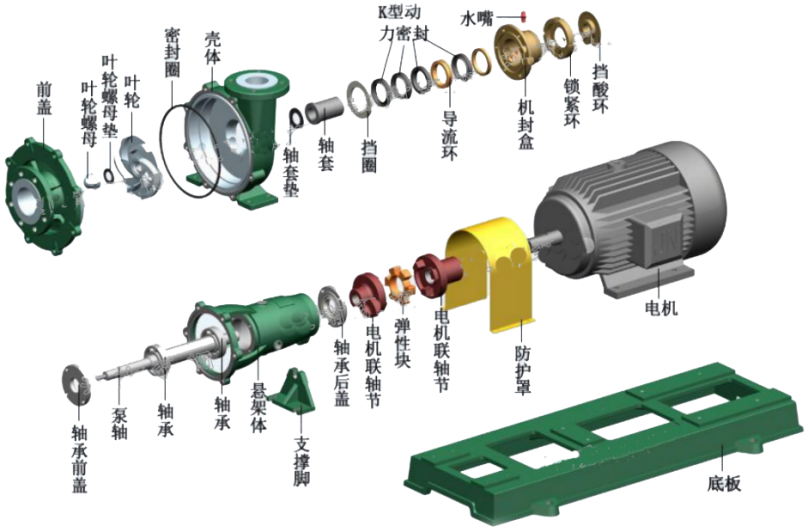

FMB component schematic diagram (power seal)

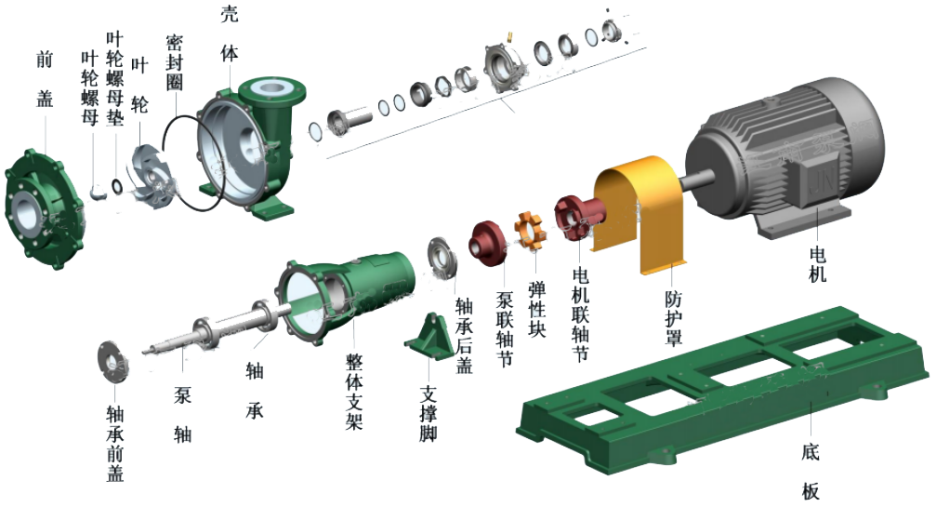

FMB component schematic diagram (mechanical seal)

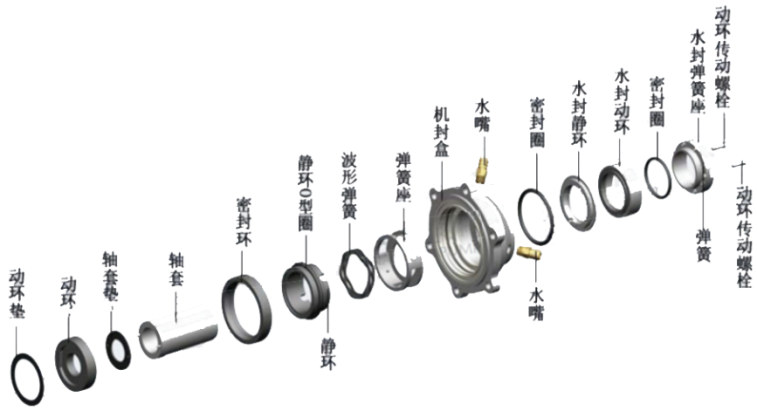

FMB machine seal component breakdown diagram

Model and Performance Parameter Table

序号	型号(Model)	转速(Rev)=2900r/min 介质密度(Med ium deJNSity)=1000kg/m³
		流量Flow(m³/h)	扬程Pump head(m)	效率(%)	进口 Inlet (mm)	出口 Outlet (mm)	汽蚀余量 NPSHr(m)	电机功率 Power(kw)	整机重量 Weight (kg)
1	FMB32-25-125	2	21	18	φ32	φ25	3.0	1.5	95
		3.6	20
		5	18
2	FMB32-25-160	2	31	13	φ32	φ25	3.0	2.2	105
		3.6	32
		5	30
3	FMB40-32-125	3	22	21	φ40	φ32	3.0	2.2	110
		6.3	20
		8	17
4	FMB40-32-160	3	34	25	φ40	φ32	3.0	3	110
		6.3	32
		8	28
5	FMB50-32-125	7	22	42	φ50	φ32	3.0	3	110
		12.5	20
		15	17
6	FMB50-32-160	7	35	40	φ50	φ32	3.0	4	120
		12.5	32
		15	31
7	FMB50-40-200	7	52	30	φ50	φ40	5.0	7.5	170
		12.5	50
		15	48
8	FMB50-40-250	7	84	24	φ50	φ40	5.0	15	220
		12.5	80
		15	75
9	FMB65-50-125	15	34	53	φ65	φ50	3.5	4	130
		25	20
		35	16
10	FMB65-50-160	15	34	51	Φ65	Φ50	3.5	7.5	145
		25	32
		35	28
11	FMB65-50-200	15	53	46	Φ65	Φ50	3.5	11	210
		25	50
		35	47
12	FMB65-50-250	15	84	30	Φ65	Φ50	3.5	22	250
		25	80
		35	75
13	FMB80-65-125	35	23	56	Φ80	Φ65	4.0	7.5	150
		50	20
		60	17
14	FMB80-65-160	35	35	55	Φ80	Φ65	4.0	15	180
		50	32
		60	27
15	FMB80-65-200	35	52	49	Φ80	Φ65	4.0	18.5	265
		50	50
		60	47
16	FMB80-65-250	35	84	49	Φ80	Φ65	4.0	30	450
		50	80
		60	75
17	FMB100-80-125	80	21	57	Φ100	Φ80	4.5	15	240
		100	20
		110	17
18	FMB100-80-160	80	37	60	Φ100	Φ80	4.5	18.5	290
		100	32
		110	29
19	FMB100-80-200	80	54	56	Φ100	Φ80	5.0	30	440
		100	50
		110	46
20	FMB125-100-125	120	24	60	Φ125	Φ100	5.5	18.5	480
		150	20
		180	16
21	FMB125-100-160	120	36	58	Φ125	Φ100	5.5	30	520
		150	32
		180	25
22	FMB125-100-200	120	44	55	Φ125	Φ100	5.5	37	530
		150	40
		180	34

Four stage motor speed performance parameters

序号	型号(Model)	转速(Rev)=1450r/min 介质密度(Medium density)=1000kg/m3
		流量Flow(m³/h)	扬程Pump head(m)	效率n(%)	进口 Inlet (mm)	出口 Outlet (mm)	汽蚀余量 NPSHr(m)	电机功率 Power(kw)	整机重量Weight(kg)
1	FMB50-32-125	4	5.5	37	Φ50	Φ32	3.0	0.75	80
		6.3	5
		8	3.5
2	FMB50-32-160	4	9	35	Φ50	φ32	3.0	0.75	80
		6.3	8
		8	6
3	FMB50-40-200	4	23.5	35	Φ50	φ40	5.0	1.5	115
		6.3	12.5
		8	11
4	FMB65-50-125	8	5.5	45	Φ65	Φ50	3.5	1.1	110
		12.5	5
		15	4
5	FMB65-50-160	8	8.5	43	Φ65	Φ50	3.5	1.1	115
		12.5	8
		15	6
6	FMB65-50-200	8	13.5	39	Φ65	Φ50	3.5	2.2	160
		12.5	12.5
		15	11
7	FMB65-50-250	8	21	37	Φ65	Φ50	3.5	4	240
		12.5	20
		15	19
8	FMB65-50-315	8	33	39	Φ65	Φ50	3.5	7.5	270
		12.5	32
		15	30
9	FMB80-65-125	16	6	48	Φ80	Φ65	4.0	1.5	130
		25	5
		35	4
10	FMB80-65-160	16	9	53	Φ80	Φ65	4.0	1.5	135
		25	8
		35	10
11	FMB80-65-200	16	13.5	45	Φ80	Φ65	4.0	3	170
		25	12.5
		35	10
12	FMB80-65-250	20	21	42	Φ80	Φ65	4.5	5.5	270
		25	20
		35	18
13	FMB80-50-315	20	34	39	Φ80	Φ50	5.0	7.5	295
		30	32
		40	29
14	FMB80-65-315	16	34	39	Φ80	Φ65	5.0	11	295
		25	32
		35	30
15	FMB80-65-400	16	52	35	Φ80	Φ65	5.0	22	480
		25	50
		35	47
16	FMB100-80-125	35	5.5	52	Φ100	Φ80	5.0	1.5	165
		50	5
		60	3
17	FMB100-80-160	35	9	55	Φ100	Φ80	5.0	2.2	220
		50	8
		60	6
18	FMB100-80-200	35	13.5	52	Φ100	Φ80	5.0	4	340
		50	12.5
		60	10
19	FMB100-80-250	35	21	50	Φ100	Φ80	5.0	7.5	390
		50	20
		60	18
20	FMB100-80-315	35	33	46	Φ100	Φ80	5.0	15	450
		50	32
		60	47
21	FMB100-80-400	35	52	42	Φ100	Φ80	5.0	22	520
		50	50
		60	47
22	FMB125-100-160	70	9	56	Φ125	Φ100	5.0	11	480
		100	8
		120	6
23	FMB125-100-200	70	13.5	54	Φ125	Φ100	5.0	15	500
		100	12.5
		120	11
24	FMB125-100-250	70	21	52	Φ125	Φ100	5.0	18.5	550
		100	20
		120	18
25	FMB125-100-315	70	33	49	Φ125	Φ100	5.5	30	680
		100	32
		120	30
26	FMB125-100-400	70	52	46	Φ125	Φ100	5.5	37	720
		100	50
		120	48
27	FMB150-125-200	140	14	56	Φ150	Φ125	5.5	22	720
		200	12.5
		240	11
28	FMB150-125-250	140	22	53	Φ150	Φ125	5.5	30	780
		200	20
		240	18
29	FMB150-125-315	140	34	48	Φ150	Φ125	6.0	45	850
		200	32
		240	30
30	FMB150-125-400	140	52	43	Φ150	Φ125	6.0	75	1100
		200	50
		240	47
31	FMB200-150-250	260	23	56	Φ200	Φ150	7.0	55	890
		400	20
		480	17
32	FMB200-150-315	260	35	59	Φ200	Φ150	7.0	75	1120
		400	32
		480	30
33	FMB200-150-400	260	53	62	Φ200	Φ150	7.0	110	1480
		400	50
		480	48
34	FMB250-200-250	500	23	68	Φ200	Φ150	7.5	75	1150
		650	20
		750	17
35	FMB250-200-315	500	35	66	Φ200	Φ150	7.5	110	1620
		650	32
		750	27
36	FMB250-200-400	500	55	65	Φ200	Φ150	7.5	132	1880
		650	50
		750	46
37	FMB300-250-315	800	36	70	Φ300	Φ250	8.0	160	2150
		1000	32
		1150	27
38	FMB300-250-400	800	55	66	Φ300	Φ250	8.0	250	2380
		1000	50
		1150	46
39	FMB300-250-500	800	65	65	Φ300	Φ250	8.0	315	2800
		1000	60
		1350	42

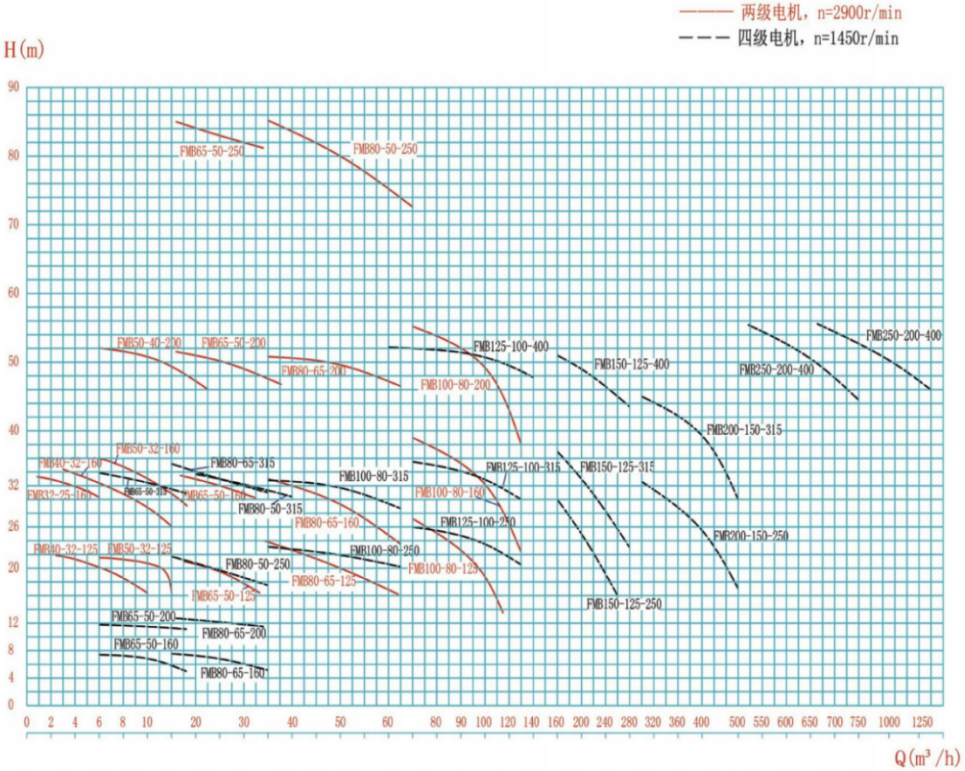

performance curve

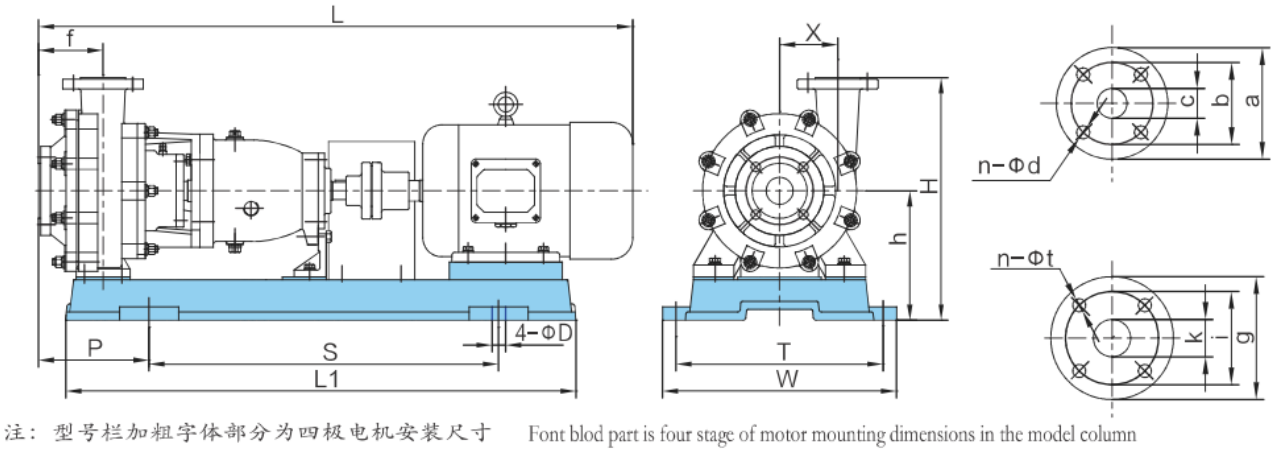

Outline drawing and dimension drawing

Outline dimension table

序号Serial Number	型号model	外型安装尺寸											进口法兰尺寸				出口法兰尺寸
		Outside and iJNStalling size											Inlet flange size				Exit flange size
		L	L1	S	P	f	W	T	H	h	X	D	c	a	b	n-φd	k	g	i	n-φt
1	FMB32-25-125	827	775	485	185	100	370	320	347	197	74.5	24	32	140	100	4-φ18	25	115	75	4-φ13.5
2	FMB32-25-160	985	880	600	182	102	385	335	408	232	90	24	32	140	100	4-φ18	25	115	75	4-φ13.5
3	FMB40-32-160	985	880	600	182	102	385	335	416	232	93.5	24	40	150	110	4-φ18	32	140	100	4-φ18
4	FMB50-32-160	990	880	600	182	102	385	335	416	232	93.5	24	50	165	125	4-φ18	32	140	100	4-φ18
5	FMB50-40-200	1100	950	650	205	120	435	385	450	240	108	25	50	165	125	4-φ18	40	150	110	4-φ18
6	FMB50-40-250	1335	1140	740	233	125	490	540	575	325	165	24	50	165	125	4-φ18	40	150	110	4-φ18
7	FMB65-50-160	1100	630	650	200	113	435	385	407	232	95	25	65	185	145	4-φ18	50	165	125	4-φ18
8	FMB65-50-200	1255	1128	740	228	120	500	435	470	260	105	25	65	185	145	4-φ18	50	165	125	4-φ18
9	FMB65-50-250	1340	1190	800	230	130	480	530	585	325	165	25	65	185	145	4-φ18	50	165	125	4-φ18
10	FMB65-50-315	1165	1110	740	230	130	530	480	585	325	165	25	65	185	145	4-φ18	50	165	125	4-φ18
11	FMB80-65-160	1245	1130	740	233	125	500	435	470	260	110	25	80	200	160	8-φ18	65	185	145	4-φ18
12	FMB80-65-200	1320	1140	740	237	130	490	440	480	260	125	25	80	200	160	8-φ18	50	165	125	4-φ18
13	FMB80-65-250	1520	1465	940	264	125	600	550	605	325	170	25	80	200	160	8-φ18	50	165	125	4-φ18
14	FMB80-65-315	1340	1110	740	250	135	530	480	595	325	170	25	80	200	160	8-φ18	65	185	145	4-φ18
15	FMB80-65-400	1515	1340	840	300	172	565	625	745	410	210	25	80	200	160	8-φ18	65	185	145	4-φ18
16	FMB100-80-160	1320	1130	740	245	139	500	435	470	260	110	25	100	220	180	8-φ18	80	200	160	8-φ18
17	FMB100-80-200	1495	1350	945	264	130	590	535	530	300	125	25	100	220	180	8-φ18	80	200	160	8-φ18
18	FMB100-80-315	1400	1350	940	264	144	540	490	630	350	160	25	100	220	180	8-φ18	80	200	160	8-φ18
19	FMB125-100-315	1830	1500	940	468	328	620	550	760	440	190	25	125	250	210	8-φ18	100	220	180	8-φ18
20	FMB125-100-400	1830	1500	940	475	335	620	550	910	475	223	25	125	250	210	8-φ18	100	220	180	8-φ18
21	FMB150-125-315	1950	1500	940	496	356	620	550	945	475	223	25	150	285	240	8-φ18	125	250	210	8-φ18
22	FMB150-125-400	2070	1620	1060	522	362	670	600	1012	510	270	28	150	285	240	8-φ18	125	250	210	8-φ18
23	FMB200-150-315	2070	1620	1060	528	368	670	600	1022	510	270	28	200	340	295	12φ22	150	285	240	8-φ18
24	FMB200-150-400	2338	1890	1240	528	368	790	720	1042	530	270	36	200	340	295	12φ22	150	285	240	8-φ18
25	FMB250-200-400	2420	1890	1240	535	375	790	720	1102	580	305	36	250	405	355	12φ22	200	340	295	12-φ22
26	FMB300-250-400	2470	1890	1240	510	352	790	720	1102	580	305	36	300	410	460	12φ22	250	405	355	12-φ22
